Loadmac 225 - 2 Way or 4 Way
Bringing Storage Solutions to You.
A compact and agile machine, the Loadmac 225 Ultra still delivers big on power and performance. With a 2.5 tonne lifting capacity at the mast, the 225 offers excellent traction, steering and stability over adverse terrain.
- Tough, light & compact
- Perfect solution for handling self-storage units
- New Loadmac stock now available
- Nationwide technical support
Loadmac is the truck mounted forklift which is raising the bar:
- 2,500kg lift capacity @600mm load centre
- Low profile or high lift mast options
- Man-on-the-ground mounting
- Lighter than key competitor models
- Designed to fit all standard mounting kits
- Excellent traction and stability over rough terrain
Our 2 Way Model features Standard rear-wheel steering, allowing for movement in a forward and reverse direction.
Our 4 Way Model features multi-directional steering, meaning it can move forward, backward, and sideways, making it more versatile for manoeuvring in tight spaces and handling long loads.
Detailed Specs
Standard Features
- All-Wheel Drive with Poclain Wheel Motors
- Differential Lock
- Hydraulic Front Stabiliser Legs
- Integrated Sideshift
- Class 2, 1200mm Forks
- Hydrostatic Steering
- Autophoretic Weatherproofing
- Triple-Coat Paint Process

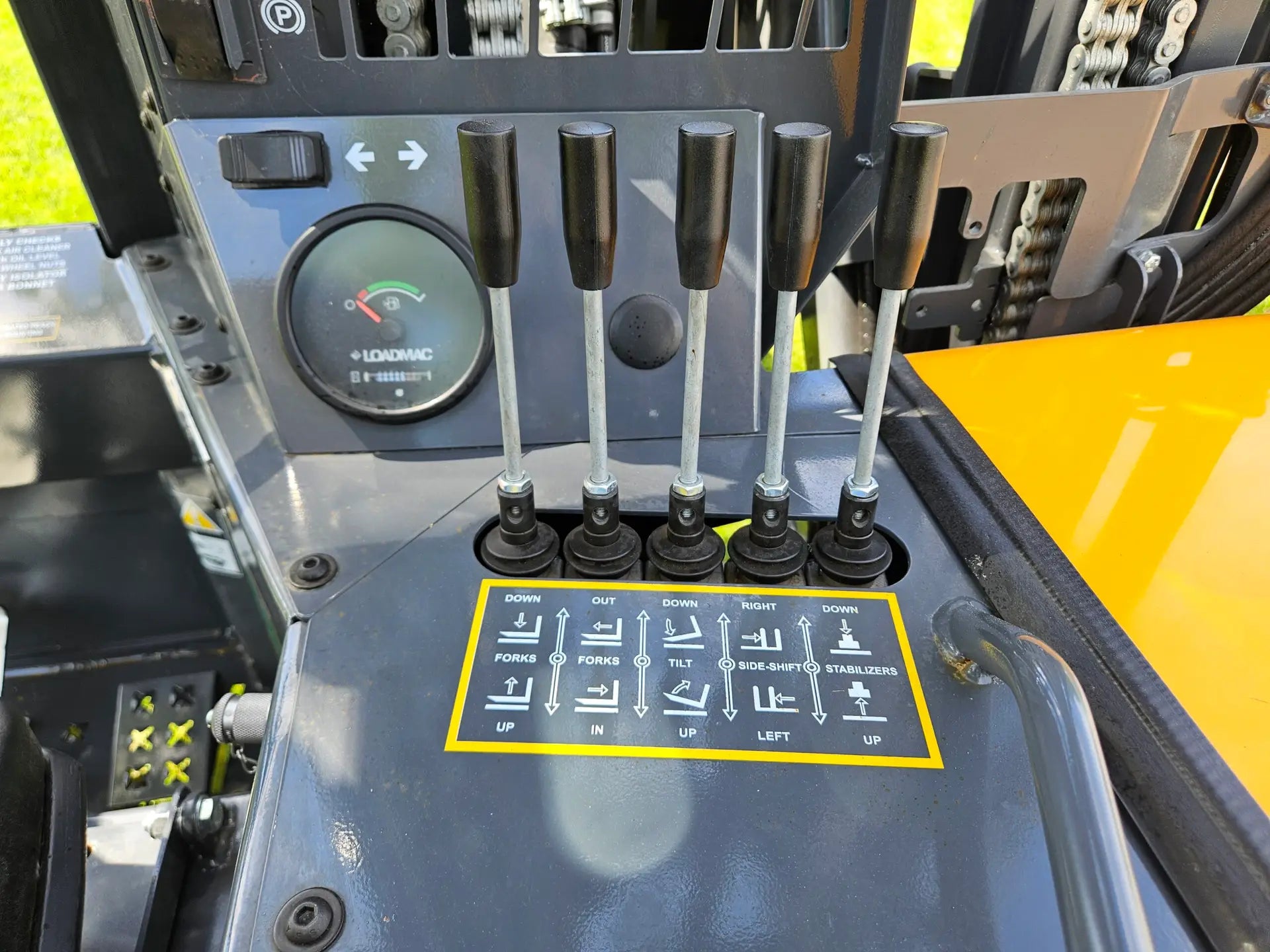

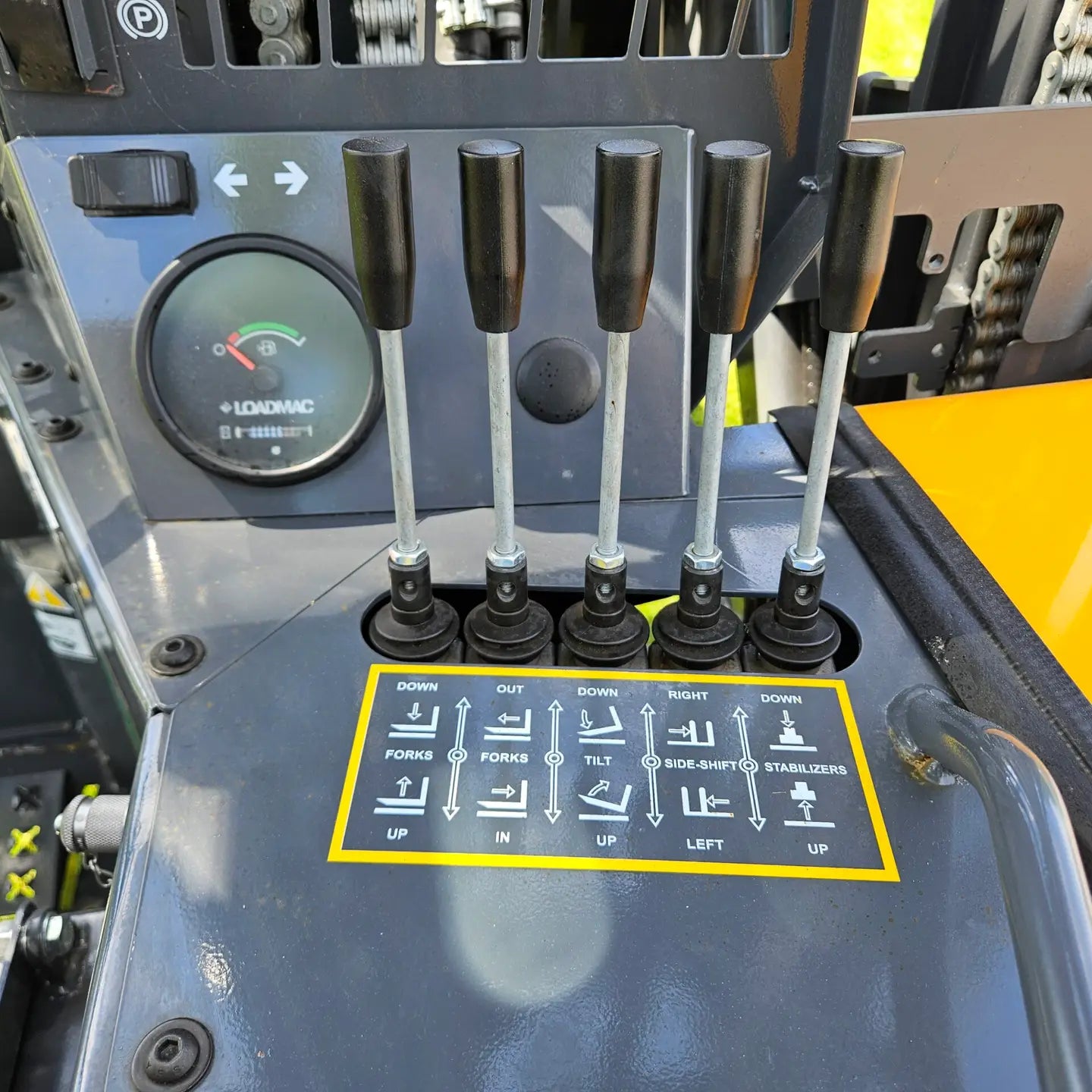

- ‘Man-on-the-Ground’ Controls
- Sacrificial Rear Corner Protection Plates
- Fold-Down Operator Safety Arm / Arm Rest
- ROPS/FOPS Cabin
- Integrated Reach & Carriage Tilt System
- One Direction Slew Ring - Provides full 90° steering in both directions
- Dual Lighting
- Full LED Work Lights
- Grommet LED Road Lighting
- Flashing Amber Safety Beacon & Reverse Alarm
- Self-Draining Laminated Glass Roof (for rain protection)
- Operator Protection Mesh
- Ground Start Key Position
- Anti-Vibration Rubber Mounted Cabin
- Fuel Tank with Electronic Level Gauge
- Mast Anti-Burst Valves
Fold-Up Suspension Seat with Occupancy Sensor - Hi-Visibility Coiled Operator Seatbelt with Interlock
- Electric Parking Brake
- IP67 Switches
- IP66 Multi-Function Instrument Panel
- Retractable Transport Chain Pins
- Transport Chain Kit (with adjustable end plate)
- Suzi Electric Cable
- Geomet Coated Mast Chains
- Easy Access Bonnet (for quick & easy access)
- Rear Tie Down Crosses and Front Tie Down Holes
Machine Specifications
- Manufacturer: Loadmac
- Model: 225 Ultra
- Lifting Capacity: 2500kg
- Load Centre: 600mm
- Unladen Weight: 2104kg (2.5m mast, integrated Reach, Wheels, Tyres)
- Power Source: Diesel
- Engine: Kubota
- Transmission: Hydrostatic
- Traction: 3 x 3 (All-Wheel Drive)
- Maximum Speed: 14 kph
- Gradeability: 49%
- Overall Width: 2280mm
- Overall Length: 2200mm (with 1200mm forks)
- Cabin Height: 2180mm
- Frame Opening: 1525mm
- Overhang : 1150mm s...Minimum
- Ground Clearance: 205mm
- Mast Type: Fixed Stability Mast with Integrated Reach (iR)
- Reach (1200mm Forks): 1300mm (fork tip to tyre face)
- Mast - 2.5m/Height: Lift: 2.5m, Minimum 2.21m
- Carriage Type: Integrated Sideshift and Tilt Functions
- Carriage Sideshift Range: 150mm
- Carriage Tilt Range: 6.5° forward / 12° back
- Forks (Standard): 1200mm x 100mm x 50mm (ITA Class 2B)
- Front Tyres: 27" x 10.5" - 8 Ply / Skidsteer Tread
- Rear Tyres: 27" x 10.5" - 8 Ply / Skidsteer Tread
Options & Special Order
OPTIONS
- Mast - 2.3m / Height: Lift: 2.3m. Minimum 2.18m (CAB)
- Mast - 3.0m / Height: Lift: 3.0m, Minimum 2.46m
- 4 Way Option with Multidirectional Steering Available for Long load Handling
SPECIAL ORDER
Mast - 3.6m / Height: Lift: 3.5m, Minimum 2.76m
New with the 225
- Increased lifting capacity: 2500kg
- Kubota Diesel Engines – 26HP / 44HP Variants
- Redesigned Hydraulic Fan "Constant Run" Circuit
- Improved Weatherproof Seat Switch & Loom Connection
- Revised Rear Levers for Ground Mounting with Speed Control
- Front Light Guards
- Locking Bonnet Handle with Secondary Security Latch
- Interlocked Orange Seatbelt
- Fully Weight Adjustable Suspension Seat
- Low Profile Mast Option for Low Clearance Access
- All Wheel Differential Lock
- All Terrain Tyres
Improvements
- New Bonnet Stay Design
- Flexible Lift Hoses (Not Hard Piped)
- Revised Drive Pedal Top Plate
- Updated Rear Wheel Lock in Multidirectional Mode
- Updated Bearing & Roller Protective Coating
- Wider Frame Widths Available for Special Applications
Loadmac 255 Ultra: Compact, Powerful, and Built to Perform
The Loadmac 255 Ultra redefines what a compact, agile truck-mounted forklift can achieve. Designed for power, performance, and operator convenience, it features a Kubota diesel engine that ensures low-maintenance, worry-free operation.
✅2-Way Model– Traditional forklift steering for straight-line efficiency in standard applications.
✅4-Way Model– Multi-directional steering withside shift capability, ideal for handling long and bulky loads in tight spaces.
Perfect for a Range of Industries
The Loadmac 255 Ultra is built to perform across diverse applications, including:
✔ Scaffolding – Move long, heavy scaffolding safely and efficiently.

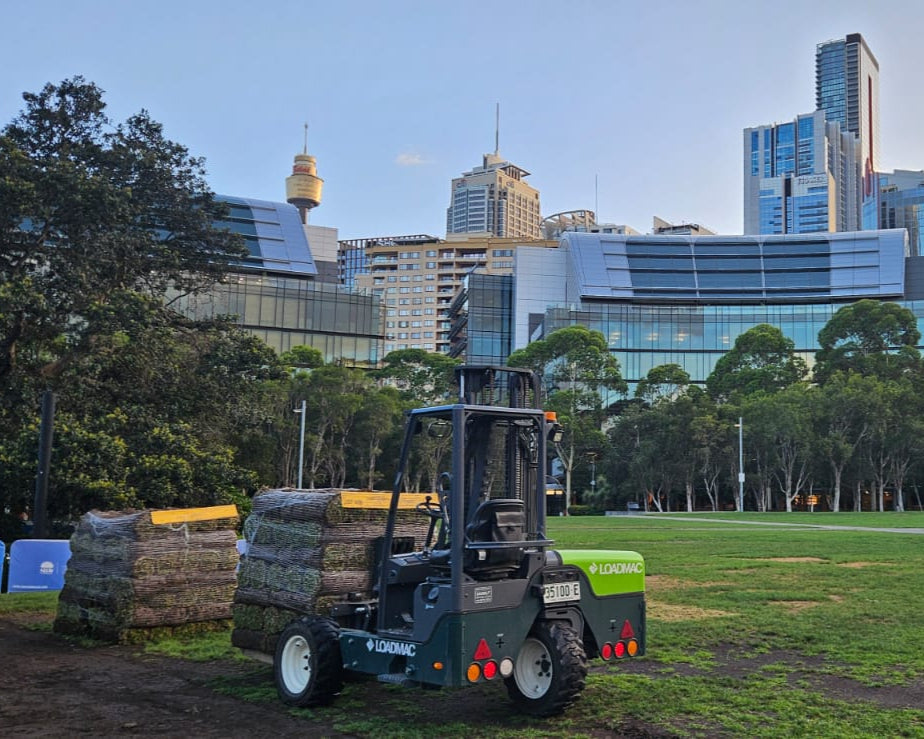

✔ Turf – Handle large pallets of grass and topsoil with precision.
✔ Brick & Block – Engineered for safe and stable handling of masonry products.
✔ Ceramic Tiles – Transport fragile and heavy tile pallets securely and without damage.
✔ Ag Feed & Rural Supplies – Lift and distribute bulk feed, fertilisers, and rural essentials effortlessly.
✔ Landscaping – Ideal for transporting soil, mulch, and other landscaping materials with ease.
✔ Self-Storage – Move and manage storage containers, pallets, and goods with precision.
✔ Hardware Store Deliveries – Handle a wide range of materials including timber, plasterboard, and steel efficiently.
✔ Waste Management & Recycling – Built tough for unpredictable and harsh environments.
✔ Bee Keeping – Transport beekeeping equipment, hives, and honey supplies with care.
✔ Events Industry – Move staging, marquees, and heavy event equipment quickly and safely.
✔ General Freight – Designed to handle a variety of goods for seamless freight transportation.
✔ Taxi Trucks – Perfect for fast, reliable transport of pallets and bulk goods.
Experience the difference with the only truck-mounted forklift designed to deliver power, versatility, and reliability in every operation.
Built for Safety, Engineered for Efficiency
Operator safety and comfort are at the core of the Loadmac 255 Ultra.
Ground-level mounting and dismounting reduce physical strain, while its 2,500kg lifting capacity makes it a versatile choice for various industries.
Superior Stability & Control
Designed for rugged terrain, the Loadmac 255 Ultra offers exceptional stability. With side-to-side fork positioning and an in-cab switch for quick fork width adjustments, it allows operators to handle loads with precision and ease.
Built to Last with Patented Rust-Proofing
The Loadmac 255 Ultra features patented autophoretic rust-proofing, ensuring exceptional durability even in harsh conditions. Backed by a two-year warranty, it’s designed to deliver comfort, safety, and reliability for years of dependable service.
We have the Loadmac 255 Ultra in stock and ready to ship.
Experience the difference with the only truck-mounted forklift designed to deliver power, versatility, and reliability in every operation.
Built for Safety, Engineered for Efficiency
Operator safety and comfort are at the core of the Loadmac 255 Ultra.
Ground-level mounting and dismounting reduce physical strain, while its 2,500kg lifting capacity makes it a versatile choice for various industries.
Superior Stability & Control
Designed for rugged terrain, the Loadmac 255 Ultra offers exceptional stability. With side-to-side fork positioning and an in-cab switch for quick fork width adjustments, it allows operators to handle loads with precision and ease.
Built to Last with Patented Rust-Proofing
The Loadmac 255 Ultra features patented autophoretic rust-proofing, ensuring exceptional durability even in harsh conditions. Backed by a two-year warranty, it’s designed to deliver comfort, safety, and reliability for years of dependable service.
We have the Loadmac 255 Ultra in stock and ready to ship.
Experience the difference with the only truck-mounted forklift designed to deliver power, versatility, and reliability in every operation.
Need More Power? Meet the Loadmac 825
For heavier loads and tougher terrain, the Loadmac 825 delivers unmatched lifting capacity, all-wheel drive performance, and 2-way or 4-way steering for superior manoeuvrability. Perfect for construction, timber, steel, and large-scale logistics, it’s built to handle the most demanding jobs.
